Cleverscope | Oscilloscopes

Cleverscope Oscilloscope - Screen Shots and Visuals

Precision You Can Trust
NABL-Accreditied Calibration | Available on Request

The Cleverscope Oscilloscope provides a wide range of functionalities for precise signal measurement, including tracking graph zoom, advanced mathematical operations, digital inputs, and dynamic range adjustments. The system's advanced capabilities make it ideal for analyzing both analog and digital signals in real-time..

Request Purchase
  • Detail
  • Special Features
  • Specification

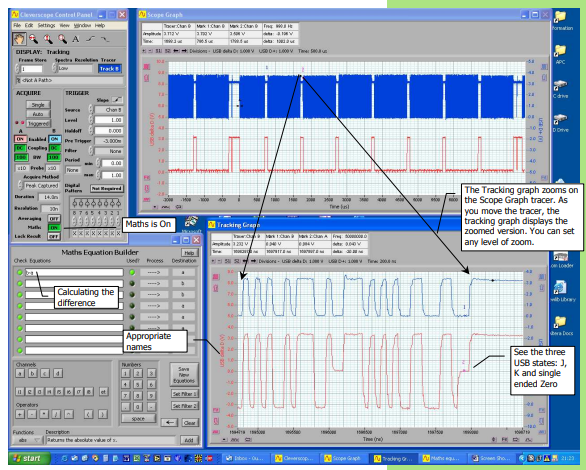

The Cleverscope Oscilloscope is equipped with various features to enhance signal capture and analysis. The Tracking Graph allows for in-depth examination of signal variations over time, while the Mathematical Equation Builder enables complex signal processing directly within the oscilloscope interface.

Key Features:

  • Signal Analysis: The system can capture both analog and digital signals, making it versatile for various applications, including USB protocol analysis and SPI communications.

  • Advanced Digital Inputs: The digital inputs can be renamed for better identification, making the oscilloscope useful for microcontroller projects.

  • Dynamic Range: Cleverscope can automatically adjust the signal range for the best possible accuracy, ensuring the highest dynamic range even in noisy environments.

  • Signal Generation: With its built-in signal generator, Cleverscope can test and validate equipment responses by simulating various signal types and parameters.

  • Tracking Graph: Zoom into captured signals with high resolution to analyze the smallest signal details.

  • Mathematical Functions: Use built-in mathematical functions for differentiation, integration, filtering, and more complex signal analysis.

  • Digital Inputs: Capture and analyze digital signals for precise control in microcontroller applications.

  • Dynamic Range Adjustment: Increase dynamic range through averaging and spectral resolution enhancements.

  • Built-in Signal Generator: Create custom signals for testing and excitation in various measurement scenarios.

  • Signal Resolution: Achieve high resolution with pixel-by-pixel peak capture and tracking for signal accuracy.

Parameter Details
Signal Type Analog + Digital Inputs
Tracking Graph High-resolution zoom for detailed signal inspection
Mathematical Operations Differentiation, Integration, Filtering
Dynamic Range Adjustment Increased by averaging and spectral resolution
Signal Generator Built-in signal generator for waveform creation
Digital Inputs 8 digital inputs with adjustable thresholds
Sampling Rate 100 MSPS
Frequency Range 20 MHz
Display Scope Graph, Spectrum Graph, Tracking Graph, Digital Graph
Averaging Capability Yes, for enhanced signal clarity and noise reduction
Signal Resolution Peak capture, 10 ns resolution
Bandwidth 20 MHz
